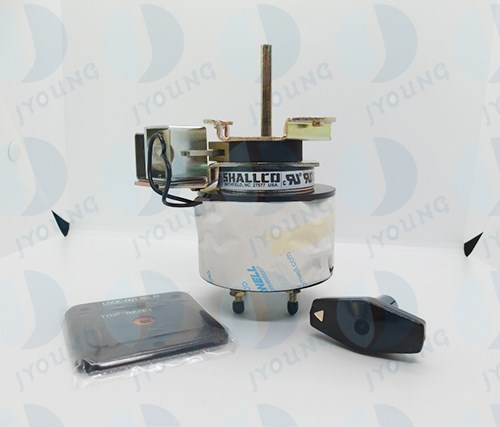

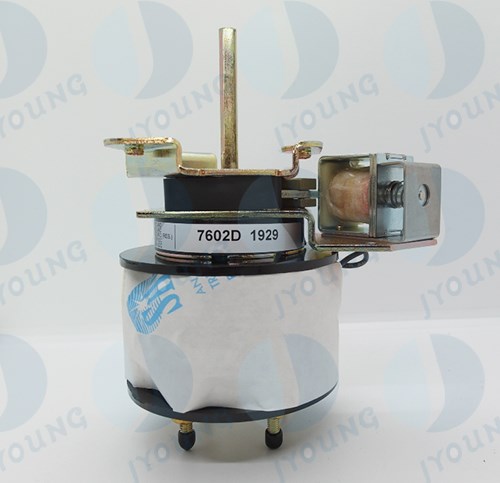

【Shallco】7602D 現貨 (編號:Lockout Relay)

NO. OF POSITIONS: 2, TRIP AND RESET NO. OF SECTIONS: 2
CONTACTS: 2 NORMALLY OPEN

2 NORMALLY CLOSED

PER DECK
ACTION: 45° POSITIVE TRIP DETENT

POSITION

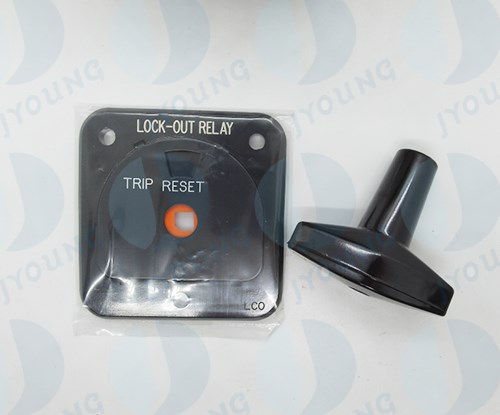

LOCK OUT RELAY

SHALLCO

STATIONARY CONTACTS : SILVER OVER COPPER NAMEPLATE: AS SHOWN

COIL SPECIFICATIONS:
OPERATING VOLTAGE: 125 VDC / 120 VAC THRESHOLD VOLTAGE: 16 VDC / 20 VAC OPERATING RANGE: 30 - 140 VDC / 30 - 140 VAC CURRENT AT RATED VOLTAGE: 4.6 / 4.4 AMPS

Download:Type:7602D
